Carbide Drills for Titanium

Titanium is a difficult material to drill because heat builds quickly at the cutting edge and chip control must be carefully managed. That is why carbide drill selection has a direct impact on drilling stability, tool life, and hole quality.

This page introduces two carbide drill series for titanium applications, with a focus on features that support stable, efficient machining.

Why Carbide Drills Are Used for Titanium

Titanium drilling requires a tool that can handle concentrated heat, maintain edge performance, and support stable chip evacuation. Carbide drills are widely used for these conditions because they help improve drilling stability, hole quality, and tool life in demanding applications.

Lineup for Titanium Applications

For titanium drilling, the right drill depends on the machining priority, whether that is reducing burrs, improving hole accuracy, maintaining process stability, or supporting a wider range of applications. NACHI offers multiple carbide drill options designed to meet these needs in demanding drilling environments.

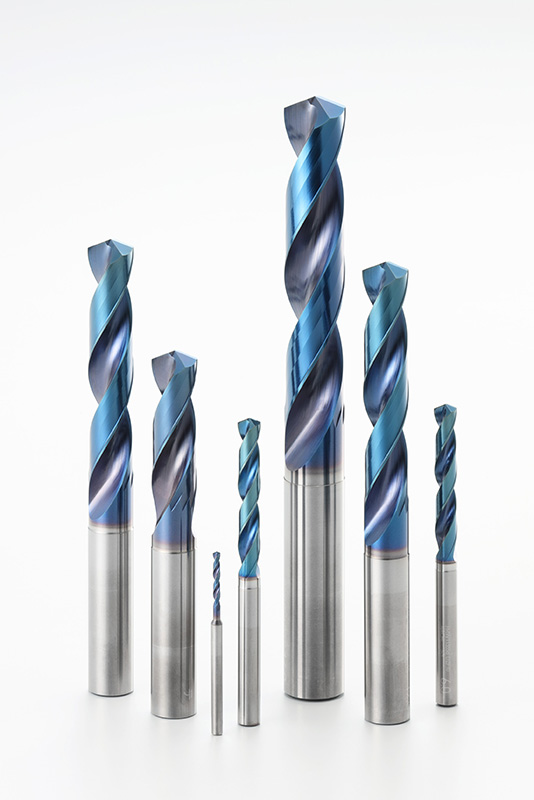

Aqua REVO Drill Series

Overview

The Aqua REVO Drill Series is designed to improve drilling performance with a carbide material that combines hardness and toughness. It also features improved wear and chipping resistance, a straight cutting edge that helps reduce cutting stress, and a REVO-D coating developed for drilling multiple materials.

These features make it a strong choice when stable performance and longer tool life matter in demanding drilling applications.

Spec Info

Item	Specification / Details
Product Name	AQUA REVO DRILL SERIES
Tool Type	Carbide drill
Application Focus	Titanium drilling / multi-material drilling
Series Variants	Stub / Regular
List Numbers	9860 (Stub Metric), 9861 (Stub Fractional), 9862 (Regular Metric), 9863 (Regular Fractional)
Size Range	2.0 mm - 16.0 mm
Point Angle	135°
Helix Angle	30°
Tool Material	Newly developed carbide material
Coating	REVO-D coating
Key Features	High hardness and toughness, improved wear and chipping resistance, straight cutting edge to reduce cutting stress, stronger corner edge, smooth surface for low friction and stable chip evacuation
Compatible Materials	Titanium and other multiple work materials
Performance Benefit	Supports longer tool life and high-efficiency drilling at higher speed and feed rates

WTX-Speed VA

Overview

The CoreLine High-Feed Drill (DIN 6537) is designed to deliver reliable performance across a wide range of drilling applications. It features a three-fluted design that supports high feed rates, along with a 140° point angle for high positioning accuracy and stable entry — even in difficult drilling conditions.

Finished with a DPX74S coating and available in a broad range of cutting diameters, it is a dependable universal choice when precision and consistent results matter across everyday drilling operations.

Spec Info

Item	Specification / Details
Product Name	WTX-Speed VA
Series	CoreLine – High-feed drills, DIN 6537 – Feed UNI
Tool Type	High-feed drill
Design	Three-fluted drill
Standard	DIN 6537
Application	Universal application
Key Features	High positioning accuracy; suitable for difficult drilling applications
Point Angle	140°
Cutting Diameter Tolerance	m7
Coating	DPX74S
Flute Count	3
Compatible Materials	Universal
Cutting Diameter / DC	Please select

Challenges in Titanium Drilling

Heat Concentration at the Cutting Edge

Titanium has low thermal conductivity, which means heat tends to stay near the cutting edge during drilling. This can increase tool wear and make stable holemaking more difficult in demanding applications.

Chip Evacuation and Tool Wear Control

Titanium drilling also requires careful chip evacuation and edge protection to maintain hole quality and process stability. In these conditions, drill features related to coolant delivery, wear resistance, and chipping resistance can play an important role in overall performance.

Conclusion

Titanium drilling requires careful control of heat, chips, and tool stability. Choosing a carbide drill with the right design features can help improve drilling performance, hole quality, and process reliability.

NACHI’s Aqua Drill EX Flat Series and Aqua REVO Drill Series offer two carbide drill options for titanium applications, each designed to support stable and efficient machining in demanding environments.
