Sandvik Coromant

Best Fit Applications

• Micro-diameter drilling from 0.30 mm to 3.00 mm
• Applications where thrust, deflection, and tool breakage risk must be controlled
• Narrow holes where chip clogging can affect process stability
• Precision drilling that requires dimensional consistency and burr control
• Processes where reaming steps need to be reduced or eliminated

Compatible Materials

• Steel
• Stainless steel
• Cast iron
• Non-ferrous metals
• Heat-resistant superalloys
• Hardened steel
• Titanium
• Non-ISO materials

Available Lineup

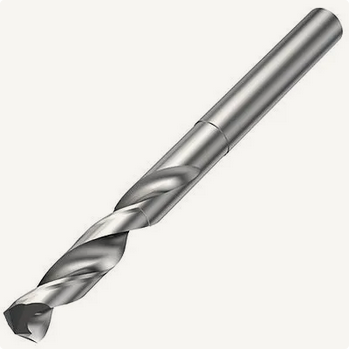

• CoroDrill® 862 Type 1: 9×D • External Coolant • Ø 0.30–3.00 mm (approx. 0.012"–0.118")
• CoroDrill® 862 Type 1: 9×D / 12×D / 16×D • Internal Coolant • Ø 1.00–3.00 mm (approx. 0.039"–0.118")
• CoroDrill® 862 Type 2: 2×D Pilot • External Coolant • Ø Match for 12 & 16×D drills
• CoroDrill® 862 PCD Type 1: 5–12×D • External Coolant • Ø 1.20–3.00 mm (approx. 0.047"–0.118")
• CoroDrill® 862 PCD Type 3: 5–12×D • External Coolant • Ø 0.30–1.20 mm (approx. 0.012"–0.047")

For Material-Specific Production Drilling

Source: Sandvik Coromant Official Website
https://www.sandvik.coromant.com/en-us/tools/drilling-tools/solid-carbide-drills/corodrill-854-856

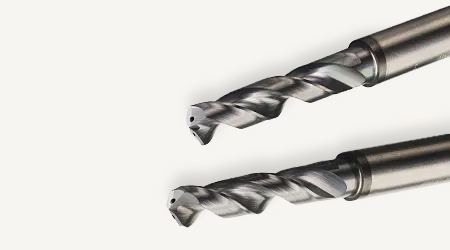

Recommended Series: CoroDrill® 860-PM

For production drilling where tool selection depends on the workpiece material, Sandvik Coromant’s CoroDrill® 860 family offers material-specific options for steel, stainless steel, non-ferrous materials, titanium, nickel-based HRSA, and multi-material applications.

CoroDrill® 860-PM is designed for high-productivity short-hole drilling in ISO P materials such as carbon steel and alloy steel. It supports stable tool life in continuous production and is suitable for automotive components such as valve bodies and manifolds.

The drill can achieve H8–H9 hole tolerances, helping reduce cycle time and rework. Its flute geometry, substrate, and multilayer PVD coating support chip evacuation, surface quality, and lower cutting resistance under thermal load.

Best Fit Applications

• High-productivity drilling of short holes
• Steel-focused production drilling with ISO P materials
• Automotive components such as valve bodies and manifolds
• Applications requiring H8–H9 hole tolerances
• Production lines where drill selection is based on workpiece material group

Compatible Materials

• Steel
• Stainless steel
• Non-ferrous materials
• Heat-resistant superalloys
• Cast iron
• Hardened steel
• Titanium

Available Lineup

• CoroDrill® 860-PM: 3–8×D • Internal / External Coolant • Ø 3.00–20.00 mm (approx. 0.118"–0.787") • For Steel (ISO P)
• CoroDrill® 860-NM: 3–8×D • Internal Coolant • Ø 3.00–20.00 mm (approx. 0.118"–0.787") • For Non-ferrous Materials (ISO N)
• CoroDrill® 860-MM: 3–8×D • Internal Coolant • Ø 3.00–20.00 mm (approx. 0.118"–0.787") • For Stainless Steel (ISO M)
• CoroDrill® 860-SM: 3–5×D • Single Diameter • Ø 3.00–16.00 mm (approx. 0.118"–0.629") • For Titanium (ISO S)
• CoroDrill® 860-SD: 3–8×D • Single Diameter • Ø 3.00–16.00 mm (approx. 0.118"–0.630") • For Nickel-based HRSA (ISO S)
• CoroDrill® 860-GM: 3–8×D • Single / Two Diameter • Ø 3.00–16.00 mm (approx. 0.118"–0.629") • Multi-material (ISO P, M, K, H)
• CoroDrill® 860 Tailor Made: Customizable geometry and dimensions • For special materials and applications

For Aerospace and Composite Stacks

Source: Sandvik Coromant Official Website
https://www.sandvik.coromant.com/en-us/tools/drilling-tools/solid-carbide-drills/corodrill-863

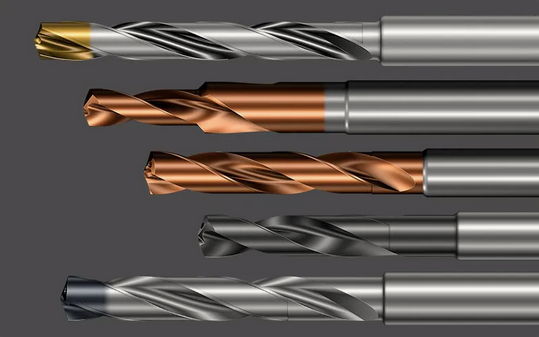

Recommended Series: CoroDrill® 863

For aerospace drilling in composites, aluminum, titanium, and multi-material stacks, Sandvik Coromant’s CoroDrill® 863 is designed for high-precision holes in critical aircraft structures.

CoroDrill® 863 is built for aerospace components such as wing boxes, floor beams, stabilizers, and frames. Its material-specific designs support drilling in composites, aluminum, titanium, and composite-metal stacks.

The drill helps reduce delamination and burr formation at layer transitions, supporting H8-class hole precision in complex stack applications.

Best Fit Applications

• Aerospace drilling in composite, aluminum, titanium, and metal stack materials
• Composite-metal stack drilling where delamination and burrs must be controlled
• Critical aircraft structures such as wing boxes, floor beams, stabilizers, and frames
• Applications requiring H8-class precision
• Production setups using vacuum systems and dedicated fixturing

Compatible Materials

• Aluminum alloys
• Composite materials
• Titanium
• Stainless steel

Available Lineup

• 863-A1-O: For composite materials • External Coolant • Ø 3.0–9.5 mm (approx. 0.118"–0.374")
• 863-A1-N: For aluminum alloys • Internal Coolant • Ø 3.0–11.1 mm (approx. 0.118"–0.437")
• 863-A1-OS: For composite-metal stacks • Internal Coolant • Ø 3.0–11.1 mm (approx. 0.118"–0.437")
• 863-B1-OS: For composite-metal stacks • Internal Coolant • Ø 3.0–11.1 mm (approx. 0.118"–0.437")
• 863-B1-MS: For aerospace metal stacks • Internal Coolant • Ø 3.0–11.1 mm (approx. 0.118"–0.437")

For more detailed technical information and product comparisons, visit our special feature on carbide drills for stainless steel.
The page highlights three top manufacturers with proven strengths in stainless steel machining, including in-depth coverage of recommended tools for this demanding material.

After-Sales Support
from Sandvik Coromant

Sandvik Coromant provides a dedicated service page with estimated lead times and instructions for submitting tools—allowing users to plan reconditioning proactively and avoid unplanned downtime.

Additional services include:

• Chat-based support for both commercial and technical inquiries
• Online contact forms for general and application-specific assistance
• Carbide scrap collection and recycling programs

These resources support a stable and efficient operation from tool use through end-of-life.
