MA Ford offers a range of drill series tailored to specific applications—for example, the 200S Series for positioning holes before the main drilling process, the 2XDSR Series for general-purpose drilling, and the MXDCR Series for deep micro-diameter holes.
These tools support the high-precision, high-volume machining demanded on manufacturing floors.
This article summarizes the key features and applications of MA Ford’s solid carbide drills by product series.
Source: MA Ford Mfg Official Website
https://www.maford.com
https://www.maford.com
Recommended
Applications for
MA Ford Mfg
MA Ford specializes in micro-diameter hole drilling for difficult-to-machine materials, making it a strong choice for precision manufacturers operating continuous production lines where downtime is not an option.
These challenging materials tend to generate high cutting resistance and retain heat, increasing the risk of tool wear and chipping. Micro-diameter holes also make chip evacuation more difficult, where even minor issues can result in tool breakage or line stoppage.
To address these challenges, MA Ford has developed its proprietary ALtima® coating, which offers excellent oxidation resistance even under high temperatures,helping to reduce wear and heat generation.
Common design features such as coolant-through capability, web thinning, and post-coating polishing further enhance chip evacuation.
The drills deliver excellent cost-performance in production environments requiring both high precision and continuous operation, such as in the automotive and aerospace industries.
Note: Performance may vary depending on the product and machining conditions, including spindle speed, feed rate, coolant, and machine rigidity.
Key Products from
MA Ford Mfg

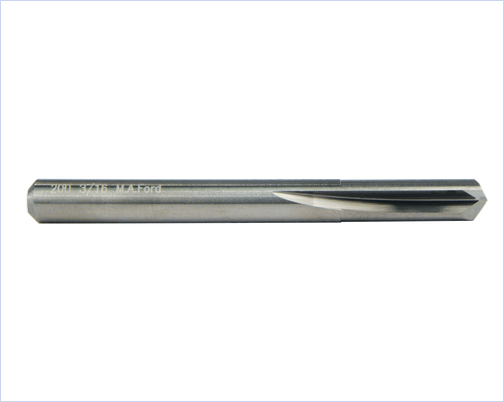

200S Series
Source: MA Ford Mfg Official Website
https://www.maford.com/Series/200/False
https://www.maford.com/Series/200/False
Overview
The 200S Series is a solid carbide drill designed specifically for positioning before the main drilling process. It creates a guide indentation on the workpiece surface to assist the follow-up drilling with main-hole drills such as the XD or CXD series.
One key feature is its blunter 145° point angle, which helps the main drill seat accurately in the indentation. This reduces the risk of chipping or vibration that can occur during the initial drilling stage.
The drill also features a single-margin design to reduce friction and is coated with MA Ford’s heat-resistant Altima® coating, allowing for reliable pre-drilling across a wide range of materials.
Note: The 200S is intended primarily for positioning prior to main-hole drilling. For chamfering with a specified angle, use dedicated spot or countersink tools.
Compatible Materials
- Carbon steels and alloy steels
- Stainless steels
- Cast iron
- Heat-resistant alloys and titanium alloys
- Hardened steels
Lineup
- 3×D type: 3.0mm to 16.0mm (approx. 0.118" to 0.630")
2XDSR Series
Source: MA Ford Mfg Official Website
https://www.maford.com/Series/2XDSR/False
https://www.maford.com/Series/2XDSR/False
Overview
The 2XDSR Series is a solid carbide drill capable of drilling to depths up to 5 times the tool diameter. It is specially designed for high-volume deep-hole machining in difficult materials such as heat-resistant alloys.
A refined point geometry reduces thrust force during entry, while a single-margin design minimizes friction by reducing surface contact with the hole wall.This enhances both penetration and stability, especially when machining hardened materials.
Higher feed rates and longer tool life are achievable compared to conventional drills.
With a 140° point angle, 30° helix angle, and MA Ford’s Altima® coating, the drill delivers reliable chip evacuation across a wide range of materials—helping reduce cycle times in production environments.
Compatible Materials
- Carbon and alloy steels
- Stainless steels
- Cast iron
- Heat-resistant and titanium alloys
- Hardened steels
Lineup
- 5×D type: 2XDSR0156A to 2XDSR6299A
- Diameter range: 1.5mm to 16.0mm (approx. 0.059" to 0.630")
- Tolerances: DC (h7), shank (h6)
- Effective length (LU): LCF − (1.5 × DC)
MXDCR Series
Source: MA Ford Mfg Official Website
https://www.maford.com/Series/MXDCR/False
https://www.maford.com/Series/MXDCR/False
Overview
The MXDCR Series is a solid carbide micro drill with coolant-through design, optimized for deep-hole drilling in micro diameters.
In small-diameter drilling, chip evacuation is a common challenge, often leading to tool breakage or line stoppages.
The internal coolant supply helps remove chips efficiently from deep holes.
To further improve chip flow, the drill incorporates a thin web at the center, reducing thrust during entry. Post-coating polishing of flutes also helps smooth chip evacuation paths.
These features enhance cutting stability, even in demanding applications.
Compatible Materials
- Carbon and alloy steels
- Stainless steels
- Cast iron and ductile cast iron
- Heat-resistant and titanium alloys
- Hardened steels
Lineup
- MXDCRM0100A – Ø1.00mm (approx. 0.039")
- MXDCRM0150A – Ø1.50mm (approx. 0.059")
- MXDCRM0200A – Ø2.00mm (approx. 0.079")
- MXDCRM0250A – Ø2.50mm (approx. 0.098")
- MXDCRM0295A – Ø2.95mm (approx. 0.116")
For more detailed technical information and product comparisons, visit our special feature on carbide drills for stainless steel.
The page highlights three top manufacturers with proven strengths in stainless steel machining, including in-depth coverage of recommended tools for this demanding material.
After-Sales Support from MA Ford Mfg Co
MA Ford offers a reconditioning service called Red Box Reconditioning, which restores the performance of worn solid carbide drills through regrinding and re-coating.
Users simply request a dedicated “Red Box,” send in the used tools, and MA Ford will inspect the wear or damage, perform regrinding, and apply a coating equivalent to the original specification.
The service is available from a single tool, making it accessible even for small-lot operations.
This service helps reduce replacement costs by extending tool life instead of purchasing new ones.
Company Information
| Address | 7737 Northwest Blvd, Davenport, IA 52806, USA |
|---|---|
| Phone Number | +1-800-553-8024 |
| Official Website | https://www.maford.com |
